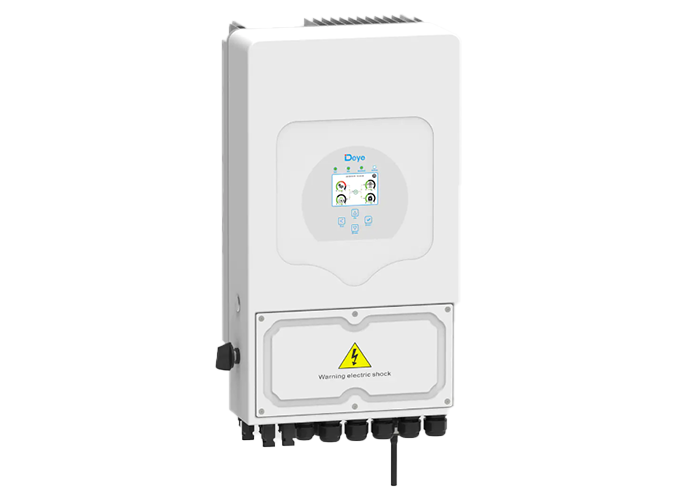

Deye 8kw-SG05

Deye 8kw-SG05

Product's rating given by customers

Product Features:



  • Battery Type: Lead-acid or Lithium-ion
  • Battery Voltage Range (V): 40~60
  • Max. Charging Current (A): 190
  • Max. Discharging Current (A): 190
  • Charging Curve: 3 Stages / Equalization
  • External Temperature Sensor: Yes
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS
  • Rated AC Output Active Power (W): 8000
  • Max AC Output Active Power (W): 8800
  • Peak Power (off grid): 2 times of rated power, 10 S
  • AC Output Rated Current (A): 36.4/34.8
  • Max AC Output Current (A): 40/38.3
  • Max. Continuous AC Passthrough (A): 50
  • Power Factor Adjustment Range: 0.8 leading to 0.8 lagging
  • Power Factor: 1
  • Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230Vac
  • Grid Type: Single Phase
  • Operating Temperature Range (℃): -40~60℃, >45℃ Derating
  • Cooling: natural cooling
  • Noise (dB): ≤30 dB
  • Communication with BMS: RS485; CAN
  • Protection Degree: IP65
